QSC S8T

Tavahind: 464,82 €
232,41 €
Laoseis: 1
Tee oma pakkumine

Omapoolse hinnapakkumise tegemiseks täitke järgnevad väljad ja klikkige "Saada". Lahtrisse "hind" sisestage ühe toote eest pakutav hind käibemaksuga. Kui soovite osta suuremat kogust kui 1, siis mainige seda kommentaari lahtris.
Gearmarket edastab saadud pakkumise seadme müüjale. Anname teie pakkumise kohta tagasisidet niipea, kui oleme müüjalt vastuse saanud.
Toode jääb Gearmarketi veebipoodi jätkuvalt müügile.






Kirjeldus:

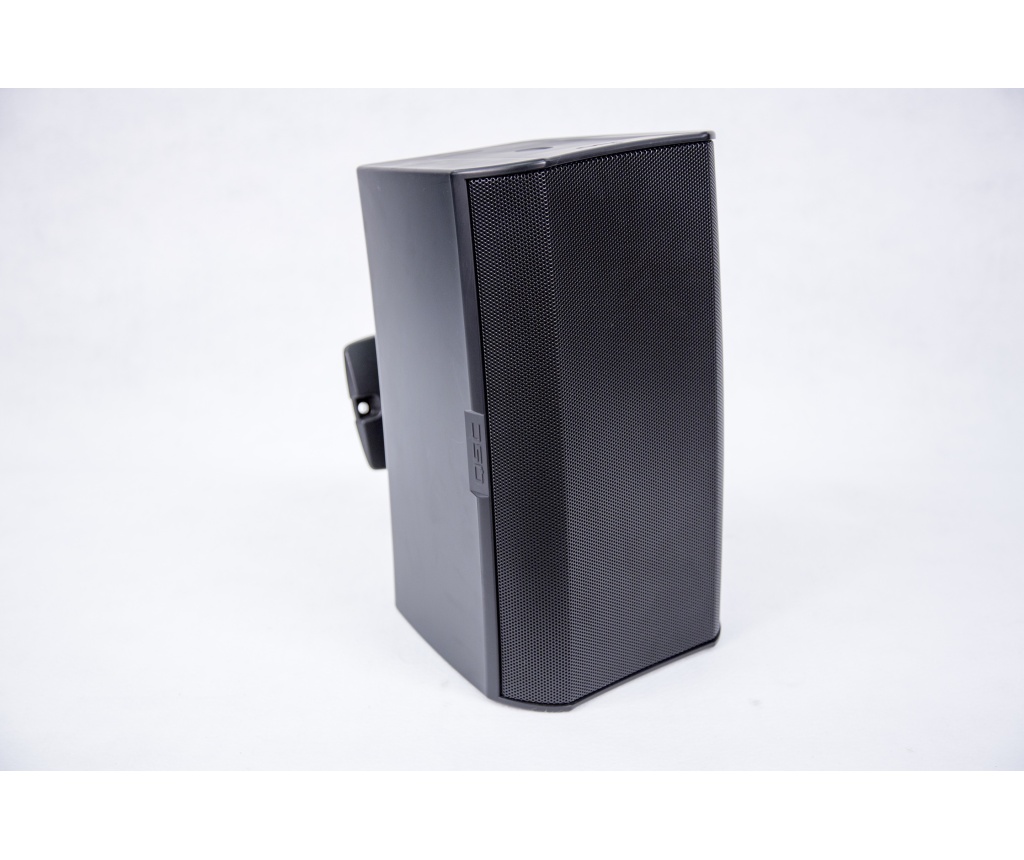

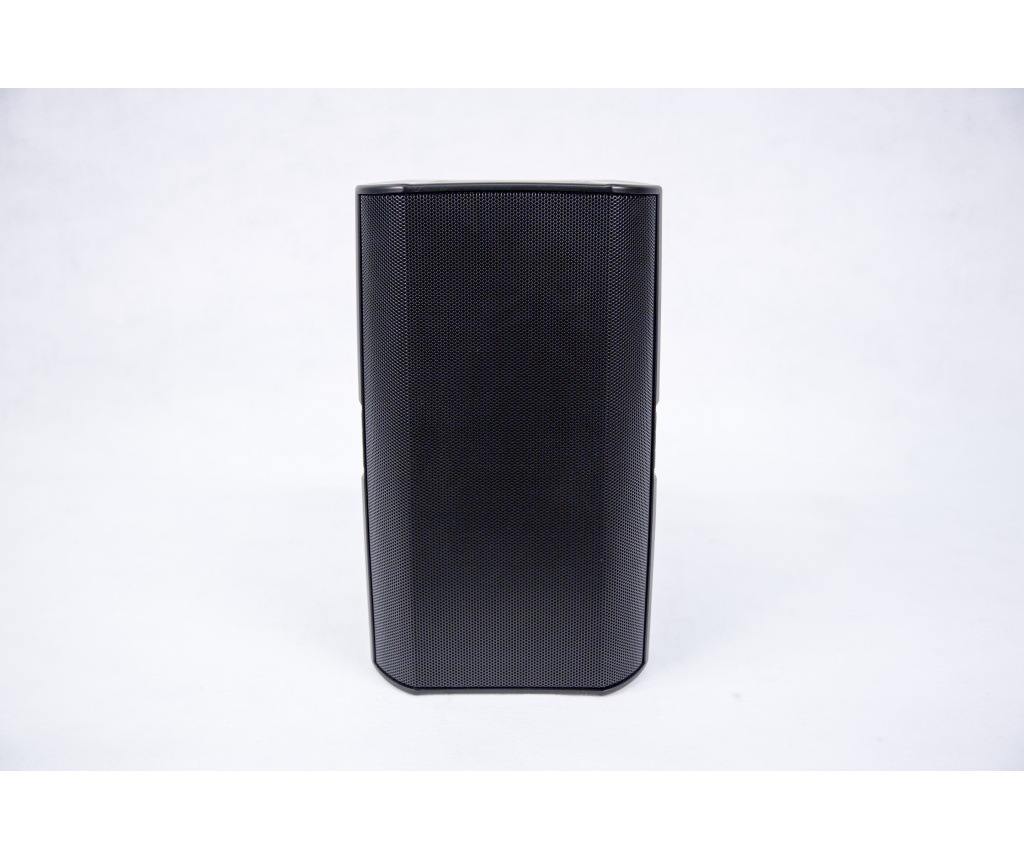

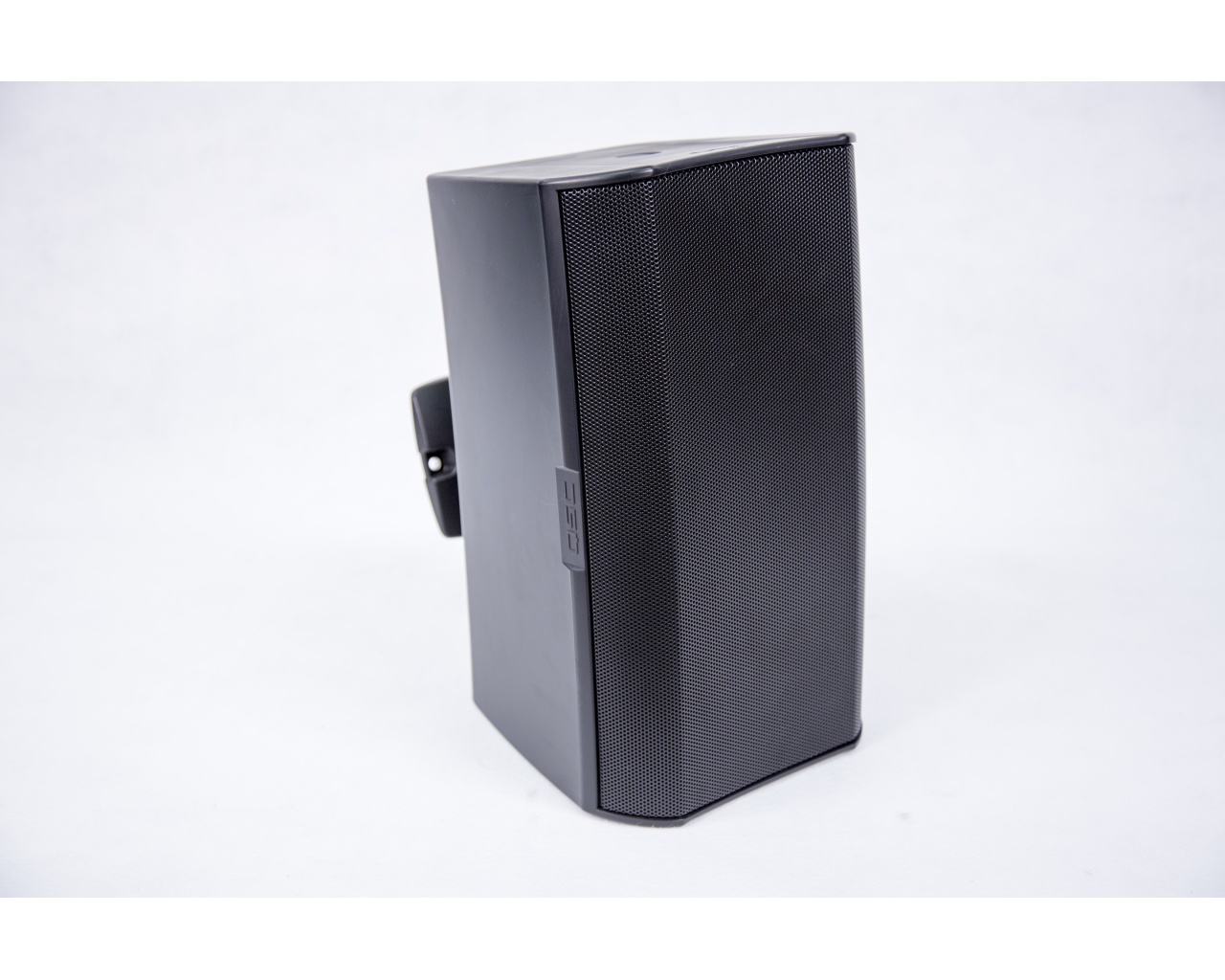

Installikõlar, 8", must

Warranty period:
30 days
Year of manufacture:
2015
Condition:
as new
Failid:

Toote kirjeldus

  • 8” weather treated woofer; 1.4” compression driver
  • 105° conical DMT coverage
  • 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
  • Maximum peak SPL 119 dB (8Ω bypass)
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area

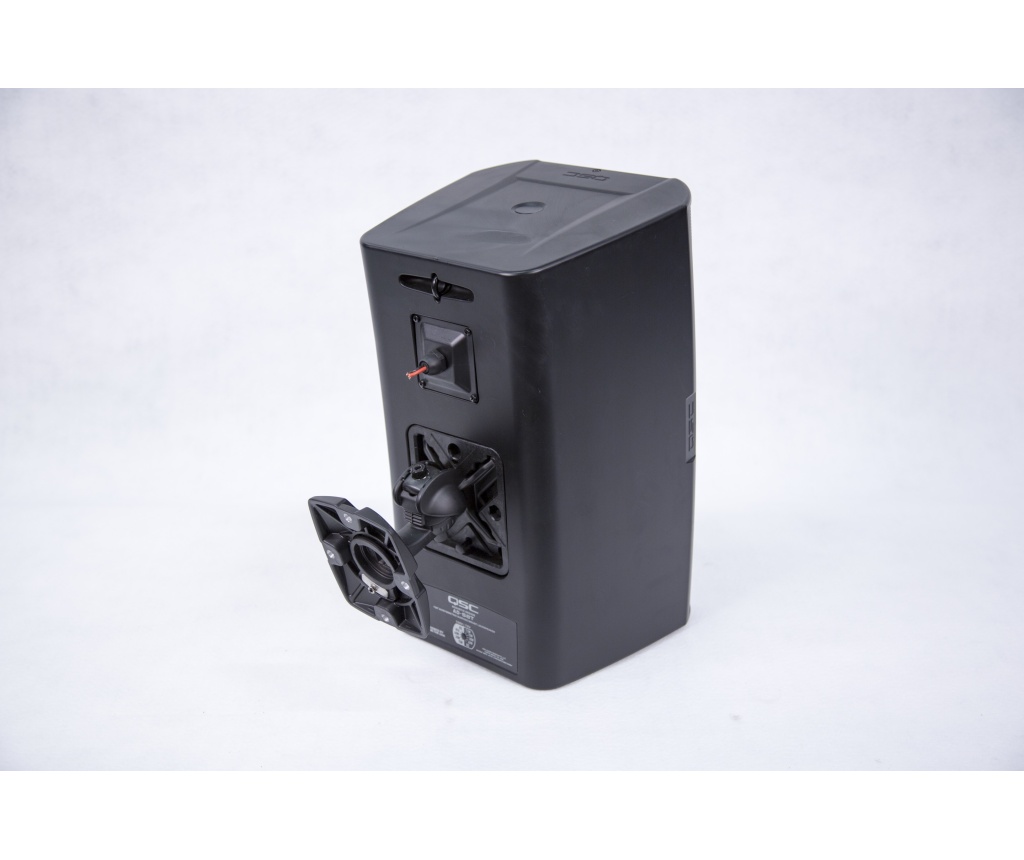

  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS processing or CXD amplifier platforms
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online

Tehnilised andmed

Effective frequency range1 55 Hz - 20 kHz
Rated noise power / voltage2 200 watts / 40 volts (rms)
Broadband sensitivity3 90 dB SPL
Coverage angle (-6 dB) 105° conical DMT
Directivity factor (Q) 7
Directivity Index 9 dB
Maximum continuous SPL4 113 dB
Maximum peak SPL4 119 dB
Rated impedance 8 ohms
Recommended amplifier power
(loudspeaker "program" power) 400 watts
Transformer taps 70 V: 60, 30, 15, 7.5 W and 8Ω bypass

100V: 60, 30, 15 W and 8Ω bypass
HF transducer 1” exit / 1.4” voice coil compression driver
LF transducer 8” weather resistant paper cone woofer

2” / 51 mm voice coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
X-Mount material Powder coated aluminum
Enclosure Details
Ingress protection IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use using the following tests:

Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
High and low temperature: tested to QSC internal standards between -20° and 50° C
Net weight 24.1 lb / 11 kg
Product dimensions
(HWD) inches 17.3 × 10 × 9.9
Product dimensions
(HWD) mm 440 × 254 × 251
Shipping weight 32.1 lb / 14.5 kg
Shipping dimensions
(HWD) inches 24.3 × 13.8 × 13.8
Shipping dimensions
(HWD) mm 729 × 351 × 351
Included accessories X-Mount mounting system, Euroblock connector,
input panel cover
Optional accessories YMS8T yoke mount, M10 Kit-C
