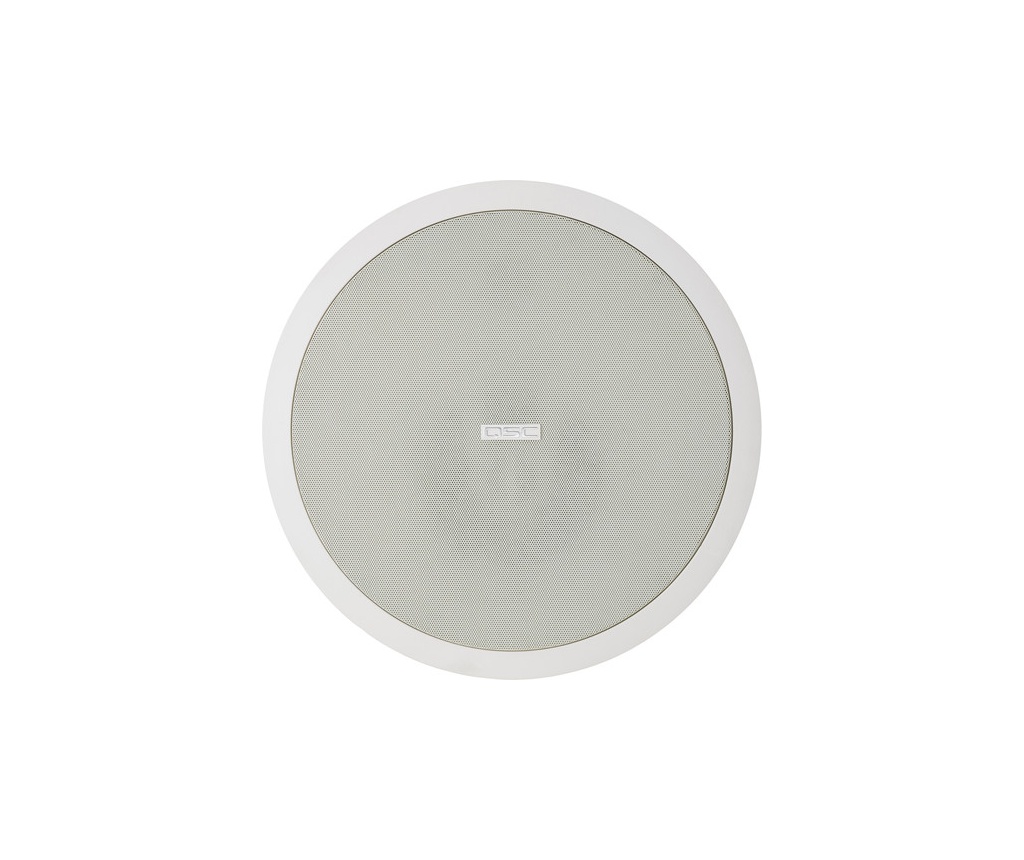

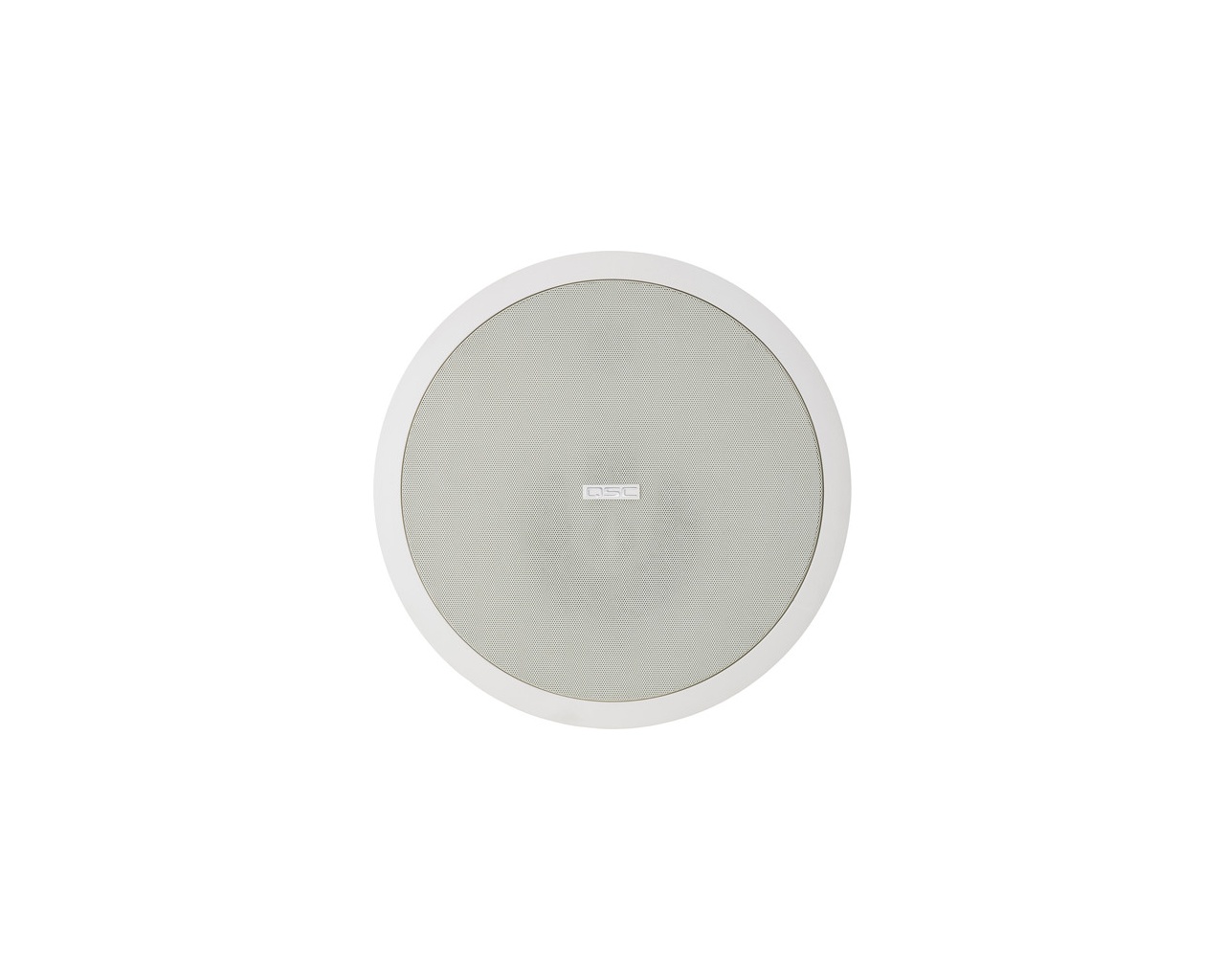

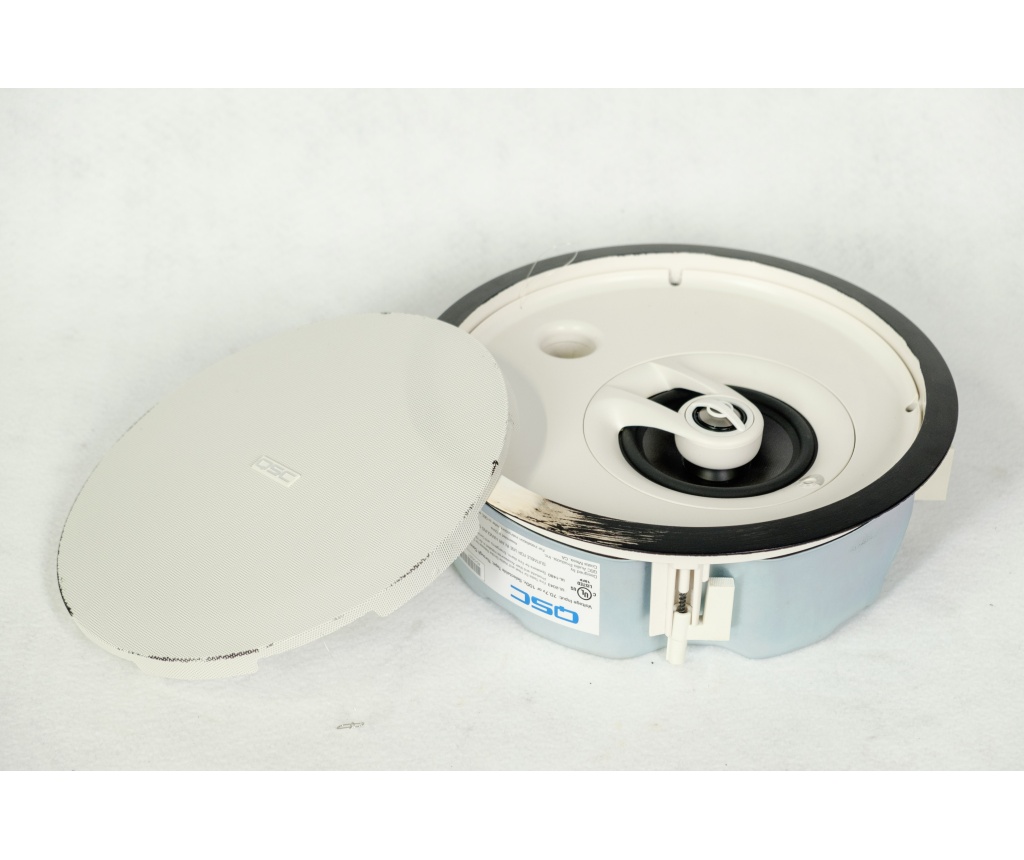

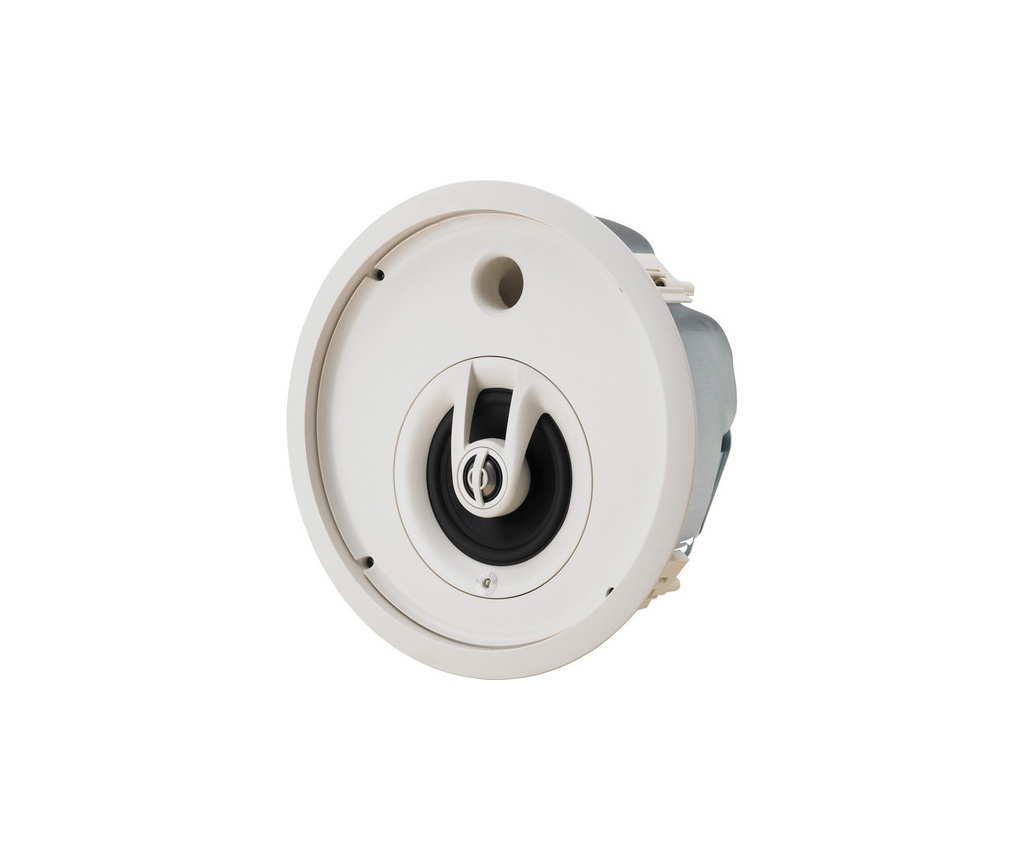

QSC AD-Ci52ST
5" Shallow Ceiling Speaker
|
Active or Passive |
Passive |
|
Frequency Response |
63 Hz - 20kHz |
|
Power Capacity |
40W |
|
Maximum Sound Pressure Level (SPL) |
Continuous: 103 dB |
|
Nominal Sensitivity |
87.5 dB, 2.83 V, 1 m |
|
Impedance |
8 ohms |
|
Crossover |
Not Specified by Manufacturer |
|
Shielded |
Not Specified by Manufacturer |
|
Low Frequency Driver |
5.25" (13 mm) Cone Woofer |
|
High Frequency Driver |
1" Dome Tweeter |
|
Enclosure Material |
Polystyrene on a Shell Enclosure |
|
Input Connections |
4-pin Euro Terminals |
|
Environmental |
Weather-Resistant |
|
Dimensions |
Diameter: 11.4" (290 mm) |
|
Weight |
8 lbs (3.7 kg) each |
Kaheribaline columnt point-source kõlar
The QSC AcousticPerformanceTM AP-5122 is a professional, two-way, full-range loudspeaker ideal for a variety of installed sound reinforcement applications requiring higher SPL output and a clean appearance. The AP-5122 uses a high power-capacity, 76mm (3-inch) diaphragm compression driver and combines it with a 305mm (12-inch) woofer to deliver exceptional
full bandwidth reproduction.
